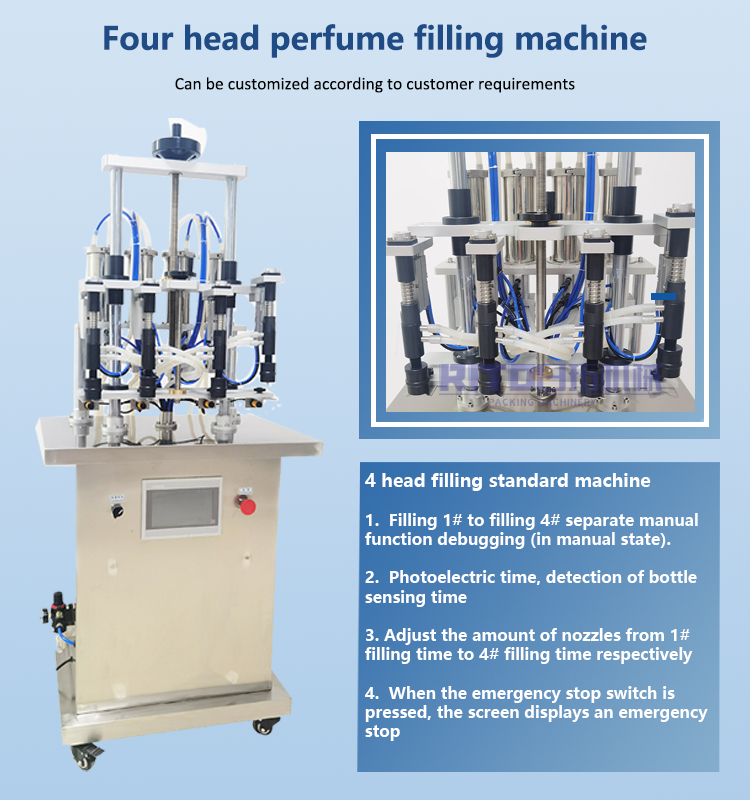

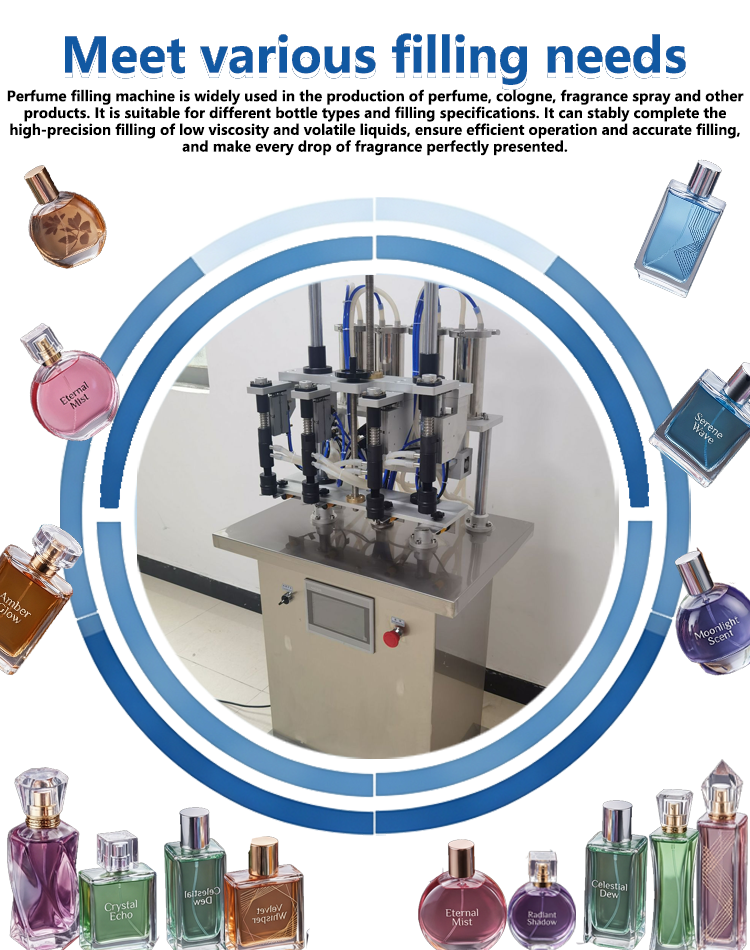

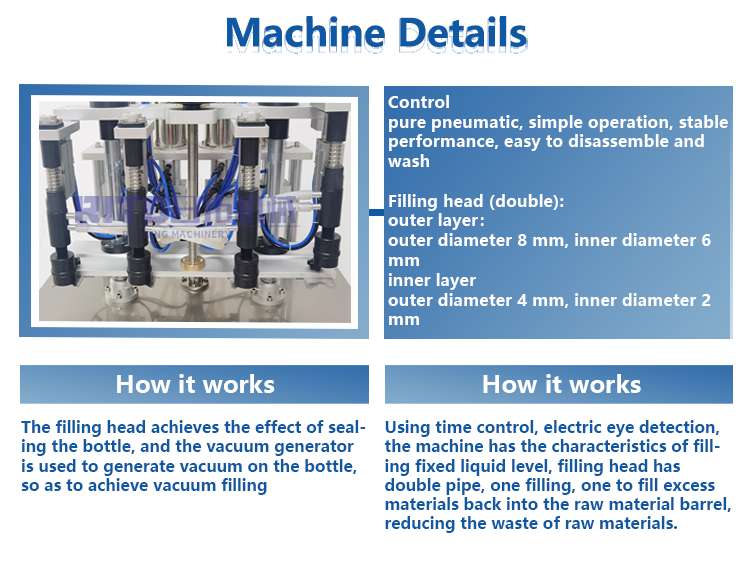

The semi-automatic vacuum negative pressure filling machine is a pure pneumatic equipment. Using PLC time control, electric eye detection, no bottle no filling, the filling volume is determined by the depth of the filling head into the easy interior, so that the filling liquid level will remain the same regardless of whether the bottle volume is consistent or not. It is especially suitable for filling liquid levels such as perfumes and pharmaceutical solutions, and is an ideal choice for your wiring or stand-alone application.
Filling accuracy: 1mm
Piston cylinder capacity: 2-1000ml (one specification).
Air source: After drying treatment, the working air pressure ≥ 6kg/cm2, and the air consumption varies with the size of the output
Weight: Approx. 40kg
Tray: Height adjustment
Working principle: negative pressure
Material type: liquid
Number of filling heads: double layer
Packaging Type: Filling
Capacity: 2 0-40 bottles/min (filling speed and pumping speed can be adjusted according to the characteristics of the material).
Power supply: unidirectional 220V 120W
The Guangzhou headquarters occupies an area of 3000 square meters. It is a national high-tech enterprise integrating R&D, production, sales and service of packaging machinery. It is a high-tech enterprise supported by the Guangzhou Municipal Government.
Since its establishment, Guangzhou RITO packaging machine co.,Ltd has been committed to becoming a world-class packaging machinery company, attaching importance to product development and innovation, insisting on independent research and development of product lines, and having a top technology research and development team with more than 20 years of experience in the packaging machinery field. Including software engineers, mechanical engineers, electrical engineers, industrial designers, etc., they have made outstanding contributions in the fields of outlook design, software development, and mechanical design. Our products has more than 10 patents, of which more than 1/2 are invention patents. Far ahead of the industry.
Based on the needs of customers in various industries and the in-depth cultivation of the terminal market, Guangzhou RITO packaging machine co.,Ltd has launched piston liquid filling machine, capping machine, labeling machine, and Back end packaging machine with its strong R&D capabilities in the field of packaging machine marking and many years of industry accumulation. Industry application solutions liquid filling machine series, capping machine series, labeling machine series and other back end carton packing machines have been recognized and praised by many customers at home and abroad, and strive to have an impact on the Chinese manufacturing industry in the world.
